UHB耐腐耐磨砂浆泵

UHB-ZK耐腐耐磨砂浆泵简称为“UHB-ZK砂浆泵”为悬臂式单级、单吸耐腐耐磨泵,其过流部件采用钢衬超高分子量聚乙烯制造,具有较强的耐腐蚀性、优异的耐磨性、抗蠕变性(耐环境应力开裂),同时采用金属基体结构,提高了产品承压能力。一、UHB型耐腐耐磨砂浆泵的密封形式该密封为WB2型机械密封,属外装多弹簧四氟波纹管件标准机械密封,不需加冷却水。该密封动静环分别采用工程陶瓷和填充四氟制成,具有结构简单,

立即咨询
联系热线 0523-84185880

UHB-ZK耐腐耐磨砂浆泵简称为“UHB-ZK砂浆泵”为悬臂式单级、单吸耐腐耐磨泵,其过流部件采用钢衬超高分子量聚乙烯制造,具有较强的耐腐蚀性、优异的耐磨性、抗蠕变性(耐环境应力开裂),同时采用金属基体结构,提高了产品承压能力。


一、UHB型耐腐耐磨砂浆泵的密封形式


该密封为WB2型机械密封,属外装多弹簧四氟波纹管件标准机械密封,不需加冷却水。该密封动静环分别采用工程陶瓷和填充四氟制成,具有结构简单,安装方便、互换性好等优点,主要应用于输送不含硬介质固体颗粒,不会快速凝固的腐蚀性介质。也可根据用户要求换配169型机械密封,用于输送结晶性强碱、盐溶液等化工介质。若动静环均采用工程陶瓷制成,则可输送含硬介质颗粒的腐蚀性介质。


       该密封注意由叶轮(或副叶轮)与停车密封(橡胶油封)组成。工作时由于副叶轮(或副叶片)旋转产生的离心力使密封腔内处于负压状态,从而阻止液体向外泄露,此时,停车密封不起作用,橡胶油封的唇口因为负压而松开,与轴套产生一定间隙,减少它们之间的磨损,延长了使用寿命,停机时,由于副叶轮(或副叶片)停止旋转,密封腔内由负压转变为正压,停车密封开始工作,橡胶油封的唇口在压力作用下紧紧包住轴套,从而达到密封目的,若允许密封液渗入介质内,可选用K1型动力密封,则可添加外冷却水装置,延长油封的使用寿命。该密封的油封采用橡胶制成,主要适用于输送含固体颗粒的料浆,含杂质的污水等腐蚀性介。


二、UHB砂浆泵的特点


强大的耐磨性:乙烯(UHMW-PE)过流部件全部采用钢衬超高分子量聚制造,超高分子量聚乙烯(UHMW-PE)的耐磨性居塑料首,比尼龙66(PA66)、聚四氟乙烯(PTFE)高4倍,是碳钢、不锈钢耐磨性的7-10倍。


强大的耐冲击性:超高分子量聚乙烯的冲击强度位居通用工程塑料首,是(丙烯腈/丁二烯/苯乙烯)共聚物(ABS)的5倍,


优良的耐腐蚀性:该泵在一定温度和浓度范围内能耐各种腐蚀性介质(酸、碱、盐)及有机溶剂,安全可靠,无毒素分解:该泵所采用超高分子量聚乙烯(UHMW-PE)化学性能极其稳定,因此亦适合在食品行业使用。


耐腐耐磨,一泵多用,酸碱类清液料浆均适用。泵体为钢衬超高分子量聚乙烯结构,衬里厚度为8~20mm,该泵应用了衬塑技术,和其它同类泵相比较,具有衬里层抗热变形性能好,耐开裂,防脱落,使用温度高等优势。密封:K型动力密封和机械密封。

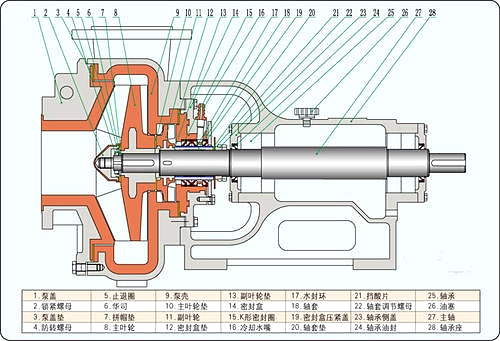

三、UHB砂浆泵的结构组成




     UHB砂浆泵被广泛适用于化工、制酸、制碱、冶炼、稀土、农药、染料、医药、造纸、电镀、电解、酸洗、无线电、化成箔、科研机构、国防工业等行业输送任意浓度的酸性、碱性、油类、稀有贵重液体、毒性液体、挥发性的化学介质。特别是易漏、易燃、易爆液体的输送。


      适用介质:浓度80%以下硫酸,50%以下硝酸,各种浓度的盐酸,液碱,既适用清液也适用料浆。硫酸磷肥业:稀酸、母液、污水、海水、氟硅酸,磷酸料浆等介质的输送。有色金属冶炼业:特别适用于铅、锌、金、银、铜、锰、钴、稀土等湿法冶炼的各种酸液,腐蚀性矿浆,料浆(压滤机配用)电解液,污水等介质输送。


四、UHB耐腐耐磨砂浆泵的性能参数表


型号流量 (m3/h)扬程 (m)转速 (r/min)功率(kw)进出口直径 (mm×mm)重量 (kg)
轴功率配备电机
32UHB-ZK-3-1331329000.30.7532×2580
32UHB-ZK-5-1251229000.420.75
32UHB-ZK-7-1071029000.50.75
32UHB-ZK-5-55514500.250.75
32UHB-ZK-3-1831829000.41.1
32UHB-ZK-5-1551529000.551.1
32UHB-ZK-8-1281229000.71.1
32UHB-ZK-5-2052029000.721.1
32UHB-ZK-8-1881829001.21.5
32UHB-ZK-12-15121529001.32.2
32UHB-ZK-5-2552529001.52.2
32UHB-ZK-10-20102029001.62.2
32UHB-ZK-15-15151529001.72.2
32UHB-ZK-7.5-67.5614500.40.75
40UHB-ZK-10-18101829001.62.240×32130
40UHB-ZK-15-15151529001.72.2
40UHB-ZK-10-30103029002.23
40UHB-ZK-15-25152529002.73
40UHB-ZK-18-20182029002.63
50UHB-ZK-10-7.5107.514500.81.150×40170
50UHB-ZK-10-35103529003.24
50UHB-ZK-20-202020290034
50UHB-ZK-25-18251829003.24
50UHB-ZK-30-15301529003.14
50UHB-ZK-15-32153229003.55.5
50UHB-ZK-20-30203029004.35.5
50UHB-ZK-25-282528290055.5
50UHB-ZK-12-40124029003.85.5
50UHB-ZK-15-43154329005.67.5
50UHB-ZK-15-30153014502.95450×40380
50UHB-ZK-20-30203014503.955.5
50UHB-ZK-25-30253014504.755.5
50UHB-ZK-20-25202514503.164
50UHB-ZK-25-25252514503.955.5
50UHB-ZK-15-25152514502.453
65UHB-ZK-15-815814500.91.165×50220
65UHB-ZK-30-25302529005.35.5
65UHB-ZK-35-20352029005.15.5
65UHB-ZK-40-15401529004.55.5
65UHB-ZK-30-32303229006.57.5
65UHB-ZK-35-25352529006.27.5
65UHB-ZK-40-20402029005.97.5
65UHB-ZK-5-1151114500.61.165×50270
65UHB-ZK-10-12.51012.514501.22.2
65UHB-ZK-15-12.51512.514501.62.2
65UHB-ZK-10-45104529004.87.5
65UHB-ZK-10-40104029004.25.5
65UHB-ZK-20-50205029008.711
65UHB-ZK-30-50305029001215
65UHB-ZK-30-40304029009.611
65UHB-ZK-10-55105529008.611
65UHB-ZK-20-20202014503.2465×50330
65UHB-ZK-35-15351514505.15.5
65UHB-ZK-30-203020145055.5
65UHB-ZK-35-20352014505.87.5
65UHB-ZK-AH-10-70107029008.41165×50350
65UHB-ZK-AH-15-701570290011.215
65UHB-ZK-AH-25-702570290015.918.5
65UHB-ZK-AH-30-603060290018.922
65UHB-ZK-10-30103014501.92365×50380
65UHB-ZK-20-30203014503.985.5
65UHB-ZK-30-30303014505.727.5
65UHB-ZK-20-25202514503.164
65UHB-ZK-30-25302514504.75.5
65UHB-ZK-MH-10-40104014502.92465×50400
65UHB-ZK-MH-20-40204014505.667.5
65UHB-ZK-MH-30-40304014507.8911
65UHB-ZK-MH-20-35203514504.455.5
65UHB-ZK-MH-30-35303514506.657.5
80UHB-ZK-17.5-1117.51114501.52.280×65270
80UHB-ZK-22.5-12.522.512.514502.33
80UHB-ZK-40-20402014505.87.5
80UHB-ZK-45-18451814506.17.5
80UHB-ZK-50-15501529005.67.5
80UHB-ZK-35-453545290010.811
80UHB-ZK-40-354035290010.211
80UHB-ZK-45-354535290010.111
80UHB-ZK-50-305030290010.211
80UHB-ZK-60-306030290012.615
80UHB-ZK-45-504550290014.815
80UHB-ZK-55-405540290015.818.5
80UHB-ZK-20-70207029008.931180×65300
80UHB-ZK-30-703070290014.318.5
80UHB-ZK-45-604560290018.322
80UHB-ZK-40-404040145014.818.580×65750
80UHB-ZK-30-503050145015.318.5
80UHB-ZK-40-504050145017.922
80UHB-ZK-30-603060145017.622
80UHB-ZK-50-565056145023.230
80UHB-ZK-40-604060145024.330
80UHB-ZK-60-556055145025.230
80UHB-ZK-AH-20-602060290010.31580×65370
80UHB-ZK-AH-20-752075290013.415
80UHB-ZK- AH-25-752575290015.318.5
80UHB-ZK- AH-30-703070290019.622
80UHB-ZK- AH-35-653565290022.530
80UHB-ZK- AH-40-604060290022.630
100UHB-ZK-50-11501114504.25.5100×80370
100UHB-ZK-80-158015290010.211
100UHB-ZK-60-306030290013.815
100UHB-ZK-100-201002029001115
100UHB-ZK-50-505050290017.518.5
100UHB-ZK-60-406040290016.818.5
100UHB-ZK-80-358035290017.822
100UHB-ZK-80-308030290017.522
100UHB-ZK-100-2510025290017.922
100UHB-ZK-100-3010030290017.222
100UHB-ZK-140-1514015290016.822
100UHB-ZK-100-4010040290021.830
100UHB-ZK-120-1512015290017.118.5
100UHB-ZK-140-1014010290016.418.5100×80370
100UHB-ZK-50-58505829002122
100UHB-ZK-60-506050290021.530
100UHB-ZK-100-2710027290018.422
100UHB-ZK-70-457045290023.530
100UHB-ZK-80-50805029002730
100UHB-ZK-100-451004529002830
100UHB-ZK-120-4012040290028.530
100UHB-ZK-145-2814528290029.537
100UHB-ZK-40-704070290019.522100×80400
100UHB-ZK-50-705070290023.930
100UHB-ZK-60-706070290028.637
100UHB-ZK-80-358035145019.322100×80950
100UHB-ZK-80-408040145022.330
100UHB-ZK-60-706070145035.937
100UHB-ZK-60-656065145033.637
100UHB-ZK-50-705070145031.437
100UHB-ZK-80-608060145035.937
100UHB-ZK-80-508050145040.345
100UHB-ZK-100-5710057145037.945
100UHB-ZK-80-658065145040.345
100UHB-ZK-120-5012050145039.945
100UHB-ZK-100-6510065145048.955
100UHB-ZK-120-6012060145051.555
100UHB-ZK-AH-40-75407529002830100×80480
100UHB-ZK-AH-50-805080290032.537
100UHB-ZK-AH-50-70507029003037
100UHB-ZK-AH-60-806080290033.637
100UHB-ZK-AH-80-608060290035.437
125UHB-ZK-120-2012020290017.218.5125×100480
125UHB-ZK-140-181401829002122
125UHB-ZK-150-1515015290021.522
125UHB-ZK-100-4010040290028.830
125UHB-ZK-120-3512035290029.430
125UHB-ZK-140-251402529002530
125UHB-ZK-120-3212032290026.830
125UHB-ZK-140-2814028290027.630
125UHB-ZK-160-2416024290028.130
125UHB-ZK-80-158015145010.211
125UHB-ZK-60-706070290028.637125×100560
125UHB-ZK-70-707070290033.4737
125UHB-ZK-100-5010050290034.237
125UHB-ZK-120-5012050290040.245
125UHB-ZK-80-15801598010.211125×100950
125UHB-ZK-100-4010040145028.830
125UHB-ZK-120-3512035145029.430
125UHB-ZK-140-251402514502530
125UHB-ZK-120-3212032145026.830
125UHB-ZK-140-2814028145027.630
125UHB-ZK-100-5010050145033.237
125UHB-ZK-120-4012040145032.137
125UHB-ZK-100-6010060145040.545
125UHB-ZK-120-5012050145038.545
125UHB-ZK-100-6510065145047.655
125UHB-ZK-120-6012060145049.255
125UHB-ZK-140-5614056145046.955
125UHB-ZK-150-5615056145050.355
125UHB-ZK-180-4018040145048.555
150UHB-ZK-180-1418014145028.230150×125950
150UHB-ZK-160-161601614502830
150UHB-ZK-150-2015020145024.530
150UHB-ZK-120-2512025145024.530
150UHB-ZK-138-8138898010.511
150UHB-ZK-190-1819018145019.822
150UHB-ZK-210-2621026145036.437
150UHB-ZK-240-2424024145035.237
150UHB-ZK-270-202702014503637
150UHB-ZK-148-111481198013.615150×1251000
150UHB-ZK-101-181011898012.815
150UHB-ZK-80-1180119808.911
150UHB-ZK-120-4012040145033.637
150UHB-ZK-150-401504014504245
150UHB-ZK-200-3220032145043.445
150UHB-ZK-250-3025030145041.545
150UHB-ZK-300-2530025145042.345
150UHB-ZK-AH-120-7012070145045.855150×1251200
150UHB-ZK-AH-150-7015070145058.975
150UHB-ZK-AH-180-7018070145068.675
200UHB-ZK-215-102151098015.618.5200×1501200
200UHB-ZK-210-142101498018.418.5
200UHB-ZK-168-20168209802730
200UHB-ZK-320-2432024145037.345
200UHB-ZK-350-2035020145037.145
200UHB-ZK-400-1840018145038.345
200UHB-ZK-500-1250012145038.645
200UHB-ZK-320-3232032145051.855
200UHB-ZK-350-2835028145045.255
200UHB-ZK-400-254002514507075
200UHB-ZK-250-452504514507475
200UHB-ZK-300-3830038145069.575
200UHB-ZK-350-3435034145067.375
200UHB-ZK-AH-200-7020070145076.390200×1502200
200UHB-ZK-AH-280-70280701450106.7110
200UHB-ZK-AH-300-70300701450114.3132
200UHB-ZK-AH-350-70350701450133.4160
250UHB-ZK-400-30-L40030145070.875250×2001300
250UHB-ZK-500-22-L50022145068.475
250UHB-ZK-270-142701498021.530250×2002200
250UHB-ZK-270-202702098031.837
250UHB-ZK-600-2060020145068.475
250UHB-ZK-400-3240032145076.890
250UHB-ZK-500-2650026145078.390
250UHB-ZK-400-45400451450108.9110
250UHB-ZK-500-37500371450100.7110
250UHB-ZK-600-3060030145098110
250UHB-ZK-500-45500451450123.8132
250UHB-ZK-650-45650451450137.8160
300UHB-ZK-700-40-L700401450139.2160300×2502300
300UHB-ZK-850-35-L850351450133.8160
300UHB-ZK-950-30-L950301450140.3160
300UHB-ZK-1000-28-L1000281450148.7160
300UHB-ZK-675-156751598047.2355300×2503400
300UHB-ZK-675-22.867522.898072.375
300UHB-ZK-800-3280032980118.5132
300UHB-ZK-900-219002198098.2110
300UHB-ZK-1000-30100030980137.3160
300UHB-ZK-1050-22105022980107.8110
300UHB-ZK-1100-28110028980139.5160
300UHB-ZK-960-27.496027.4980122.7132
300UHB-ZK-860-33860331450127.3132
300UHB-ZK-1000-321000321450149.3160
300UHB-ZK-1180-311180311450142.3160
300UHB-ZK-850-40850401450157.3160
300UHB-ZK-1050-28105028980139.6160
300UHB-ZK-1200-301200301450168.9180
300UHB-ZK-850-51850511450190.3200
300UHB-ZK-850-55850551450218.2250
300UHB-ZK-1000-501000501450233.4250
300UHB-ZK-1100-48.8110048.81450242.3250
350UHB-ZK-1400-28-L1400281450195.3200350×3003500
350UHB-ZK-1500-25-L1500251450194.4200
350UHB-ZK-1500-30-L1500301450232.5250
350UHB-ZK-1600-28-L1600281450216.3250
350UHB-ZK-1600-25-L1600251450186.7200
350UHB-ZK-1800-25-L1800251450224.8250
350UHB-ZK-1470-1114701172076.890350×3003850
350UHB-ZK-1600-25160025980186200
350UHB-ZK-2000-20200020980186200
350UHB-ZK-2600-16260016980194220
350UHB-ZK-1800-20180020980168180
350UHB-ZK-2000-25200025980223250
350UHB-ZK-1500-35150035980228250
350UHB-ZK-2500-20250020980233250
350UHB-ZK-2500-25250025980282300
350UHB-ZK-2000-32200032980293300
400UHB-ZK-1000-35100035980190200400×3504000
400UHB-ZK-1200-32120032980220250
400UHB-ZK-1500-30150030980223250
400UHB-ZK-1800-26180026980265280
400UHB-ZK-2000-23200023980268280
